LEDtronics Adds New Generation of Dimmable Linear LED High Bays

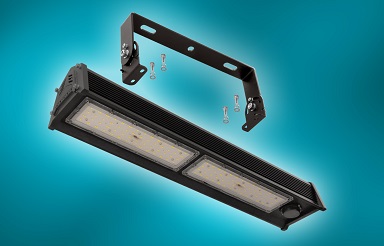

TORRANCE, CALIF.—LEDtronics has introduced a new generation of dimmable Linear LED High Bays to their product lineup. The low-profile fixture offers superior light output in a compact, lightweight body that delivers all the longevity, premium performance, reliability, and energy efficiency of LED lighting technology.

The Title 24 compliant LHB002 has an integrated dimmer that dims and shuts off the luminaire, while its microwave motion sensors activate it upon movement detection. Available options include luminaires for externally controlled 0-10V dimmers, lux detecting luminaires and DALI interface lighting systems.

The Linear High Bay replaces old-technology metal halide and high-pressure sodium bay lights in applications such as factory floors and warehouses, big-box stores and supermarkets, shopping malls, convention centers, parking garages, tunnels, gymnasiums, indoor arenas, libraries, workshops, and many more. Designed for ceiling, floor/ground or wall mounting with the included bracket, it may also be installed by suspension mounting through the optional pendant chain.

The 100-watt unit offers 5000K pure white illumination with intensity of more than 6,194 candelas and close to 16,285 lumens, with up to 70 percent energy savings. It provides a 110° wide beam with a uniform light distribution pattern through a UV-stabilized frosted polycarbonate lens. Optional 4000K natural white, 5700 cool white and other white color temperatures are also available for qualified volume offers.

Luminaire is Water-Resistant

The IP67-rated LHB002 luminaire is water-resistant (protected against temporary immersion and dust ingress). With a marine-grade, extruded black aluminum body, a weight of only 10.76 pounds, and a high CRI of 70, the IK08-rated vandal resistant high-bay light offers varied and much easier installation and maximum flexibility in every sort of application, both indoors and outdoors.

The ETL/cETL-listed lamp has a flexible input voltage range of 100 to 277VAC and operates in a wide operating temperature range of ~-20°C to ~+50°C.

It has lumen maintenance of over 70 percent at 150,000 hours, while its solid-state construction renders it impervious to shock, vibration, frequent switching, and environmental extremes. It is RoHS compliant—No UV, no IR, no toxic mercury, and features instant-on even lighting, with no buzzing and no flickering.

LEDtronics ETL-listed LED Linear High Bay Fixtures come with an unconditional 7-year U.S. factory warranty. They are available through LEDtronics distributors, and quantity discounts are available.

For more details and technical data, visit the product family web page:
